TECHNICAL SPECIFICATIONS

Input Voltage: 195-230VAC 1, 2 or 3 phase, 1 neutral, 1 ground 45-65Hz.

Output Voltage: 3,5KVA(12x3,5KVA) on 195-230VAC for each channel

Connection Parts

Input: 5x10mm² screw rail terminal blocks.

Output: 18x6mm² screw rail terminal blocks. 16A for maximum load standard for each channel (20A optional)

Input signal: DMX512 3/5 pin XLR connector 1 input 1 output, RJ12 6 socket 1 input 1 output.

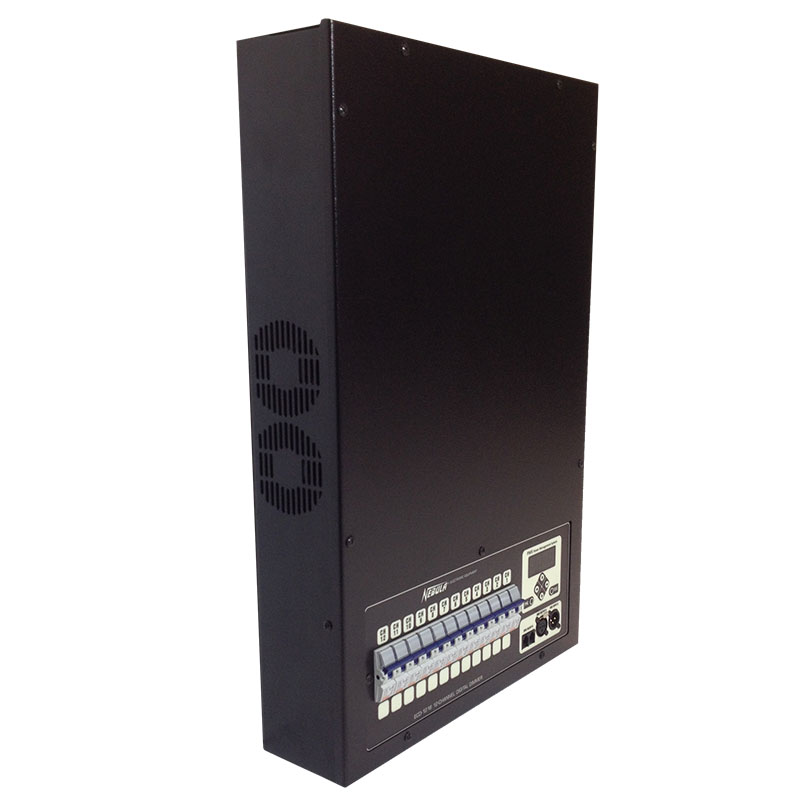

Case: Suitable for wall installation, 1.2mm DKP sheet metal, RAAL 9002 electrostatic painting.

Dimensions: 585mm(H), 390mm(W), 116mm(D)

Weight: 13 kg.

Environment Temperature: -10 ⁰C / +40 ⁰C

Humidity: %10 / %90

Quality Standards: CE

NEBULA ECODIM ECD-1216W DIGITAL DIMMER

Name: NEBULA ECODIM ECD-1216W DIGITAL DIMMER
Brand: Nebula Dimmer
Availability: InStock

NEBULA ECODIM ECD-1216W DIGITAL DIMMER

NEBULA ECODIM series DMX dimmers are solid and top performance devices that offers proper solutions on broad area.

With simple user menu and LED display screen ECD-1216W offers optimum lighting control solutions for venue and stage lighting.

GENERAL SPECIFICATIONS

Convertible working mods for 12 channel dimmer.

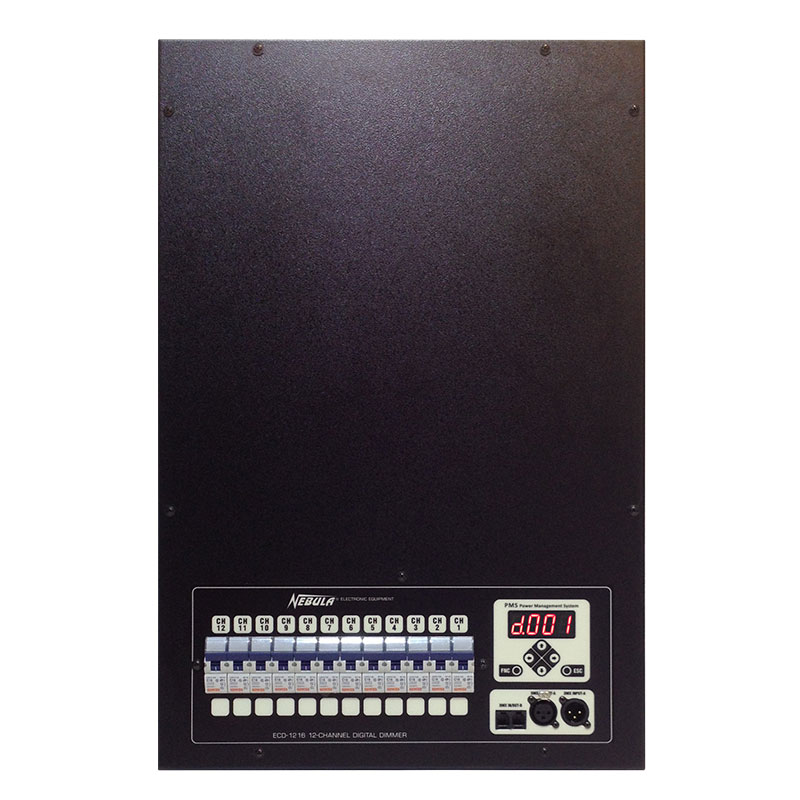

4 digit 7 segment red LED display screen
USITT DMX512-A protocol control.
Programmable DMX address assignment via menu.
Optional mods for each channels(Dimming/Switching/On/Off).
Optional preheat selection for each channel.
Manuel levelling for each channels.
Available to select on use data on device screen(DMX Address/Channel Levelling/Device Temperature or Screen Dim Out)

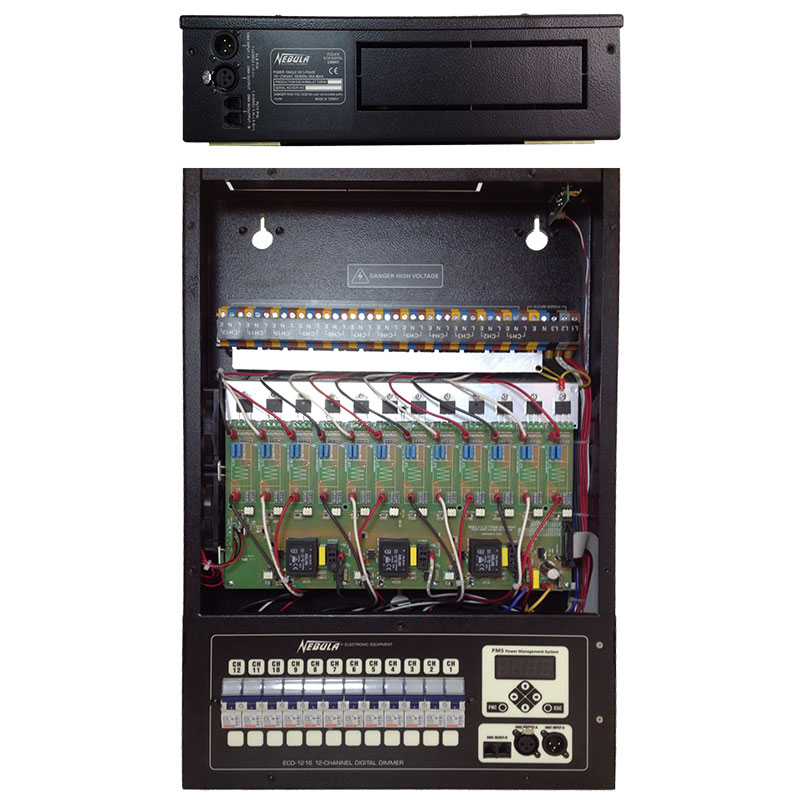

Easy installation with rail terminal blocks.
Long-lasting and silence usage with heat sensitive and speed controlled fan.
High standard safety with in device heat control via software.
On any unexpected overheat situation (sourced by environment or customer) device moved to safety mode and when the situation become normal again it will start to work again (no need to any intervention).
On three phase use if an error occurs on a phase all the channels linked to the other two phases could work without any thrashing.
16A(optional 20A) thermal and magnetic circuit-breakers for each channel.
%100 Domestic good and smooth spare parts supply warranty.
